Descrição

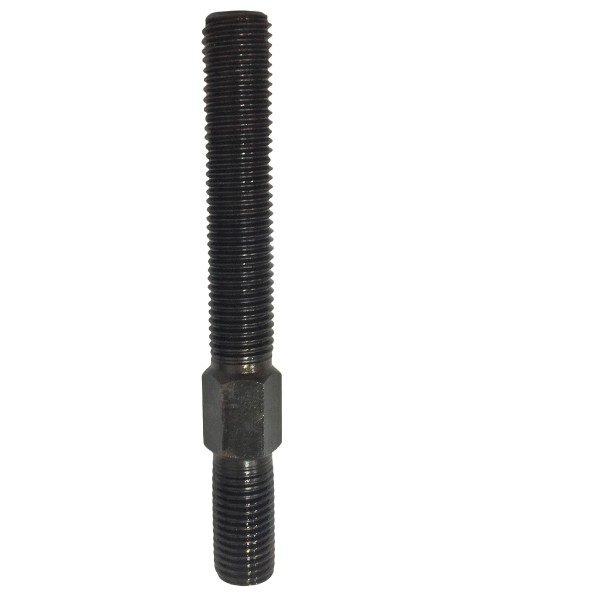

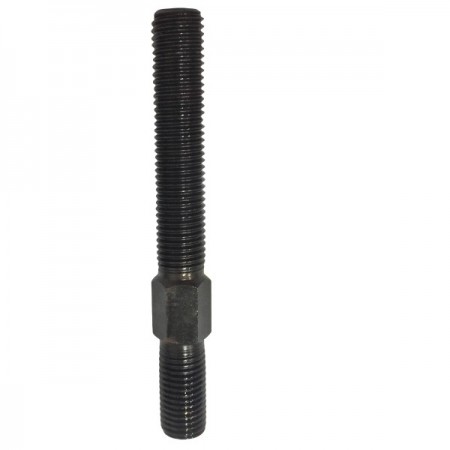

Corpo Sextavado Rosca Milímetros ou Rosca Polegadas. Prisioneiros DIN R1=(-40%). Rosca laminada Aço 1.045 Acabamento oxidado. Medidas dos prisioneiros padrão que acompanham as presilhas:3/8″ x 100 mm 1/2″ x 125 mm 5/8″ x 150 mm 3/4″ x 200 mm 7/8″ x 250 mm 1″ x 300 mm. Medidas especiais sob encomenda

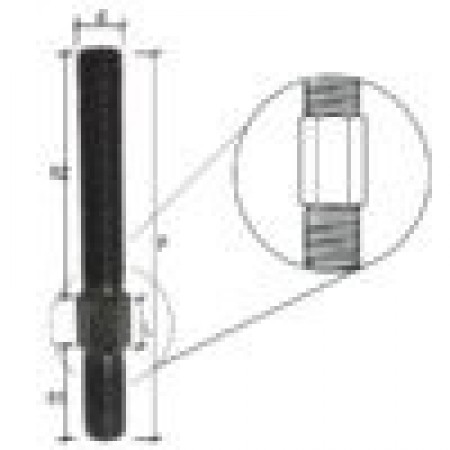

| DIÂMETRO D | P | R1 | R2 | REF | ||
| Pol. | mm | mm | mm | mm | POL | MM |
| 3/8 | 10 | 65 | 15 | 40 | PCSP0 | PCSM0 |
| 80 | 15 | 50 | PCSP1 | PCSM1 | ||
| 100 | 15 | 60 | PCSP2 | PCSM2 | ||
| 150 | 15 | 110 | PCSP3 | PCSM3 | ||
| 200 | 15 | 160 | PCSP4 | PCSM4 | ||
| 1/2 | 12 | 65 | 20 | 40 | PCSP5 | PCSM5 |
| 80 | 20 | 50 | PCSP6 | PCSM6 | ||
| 100 | 20 | 55 | PCSP7 | PCSM7 | ||
| 125 | 20 | 80 | PCSP8 | PCSM8 | ||
| 150 | 20 | 105 | PCSP9 | PCSM9 | ||
| 200 | 20 | 155 | PCSP10 | PCSM10 | ||
| — | 14 | 65 | 20 | 30 | PCSM11 | |
| 80 | 20 | 45 | PCSM12 | |||
| 100 | 20 | 50 | PCSM13 | |||
| 125 | 20 | 70 | PCSM14 | |||
| 150 | 20 | 100 | PCSM15 | |||
| 200 | 20 | 150 | PCSM16 | |||
| 250 | 20 | 200 | PCSM17 | |||
| 5/8 | 16 | 65 | 25 | 30 | PCSP18 | PCSM18 |
| 80 | 25 | 45 | PCSP19 | PCSM19 | ||
| 100 | 25 | 60 | PCSP20 | PCSM20 | ||
| 125 | 25 | 75 | PCSP21 | PCSM21 | ||
| 150 | 25 | 100 | PCSP22 | PCSM22 | ||
| 200 | 25 | 150 | PCSP23 | PCSM23 | ||
| 250 | 25 | 200 | PCSP24 | PCSM24 | ||
| — | 18 | 80 | 30 | 40 | PCSM25 | |
| 100 | 30 | 55 | PCSM26 | |||
| 125 | 30 | 70 | PCSM27 | |||
| 150 | 30 | 100 | PCSM28 | |||
| 200 | 30 | 150 | PCSM29 | |||
| 250 | 30 | 200 | PCSM30 | |||
| 300 | 30 | 250 | PCSM31 | |||
| 3/4 | 20 | 100 | 35 | 45 | PCSP32 | PCSM32 |
| 125 | 35 | 60 | PCSP33 | PCSM33 | ||
| 150 | 35 | 85 | PCSP34 | PCSM34 | ||
| 200 | 35 | 135 | PCSP35 | PCSM35 | ||
| 250 | 35 | 185 | PCSP36 | PCSM36 | ||
| 300 | 35 | 235 | PCSP37 | PCSM37 | ||
| 400 | 35 | 300 | PCSP38 | PCSM38 | ||
| 7/8 | 22 | 100 | 40 | 40 | PCSP39 | PCSM39 |
| 150 | 40 | 80 | PCSP40 | PCSM40 | ||
| 200 | 40 | 130 | PCSP41 | PCSM41 | ||
| 250 | 40 | 180 | PCSP42 | PCSM42 | ||
| 300 | 40 | 230 | PCSP43 | PCSM43 | ||
| 400 | 40 | 300 | PCSP44 | PCSM44 | ||
| 1 | 24 | 125 | 40 | 65 | PCSP45 | PCSM45 |
| 150 | 40 | 80 | PCSP46 | PCSM46 | ||
| 200 | 40 | 105 | PCSP47 | PCSM47 | ||
| 250 | 40 | 170 | PCSP48 | PCSM48 | ||
| 300 | 40 | 205 | PCSP49 | PCSM49 | ||
| 400 | 40 | 300 | PCSP50 | PCSM50 | ||
| 500 | 40 | 395 | PCSP51 | PCSM51 | ||
| — | 30 | 200 | 50 | 100 | PCSM52 | |
| 250 | 50 | 150 | PCSM53 | |||
| 300 | 50 | 200 | PCSM54 | |||
| 400 | 50 | 250 | PCSM55 | |||
| 500 | 50 | 350 | PCSM56 | |||
